Attach Curtain Wall System To Sloped Roof Plane In Revit

Click modify walls tab modify wall panel attach top base. In revit curtain walls cannot simply be tilted or rotated like the rest of the walls. So making the sloped or horizontal curtain walls that architects design can be difficult.

artistic rhinolin desk pad aries jeep tubular doors august doorbell cam pro review artificial grass installation austin texas asbury gardens memory care artificial grass in chandler arizona armstrong laminate flooring hickory augusta ga door and window replacement attach 2x4 to concrete wall aria meeting room floor plans aubergine rug ikea arena open water suit asda living floor lamps art o mats aspire breeze light stays on aus vista accommodation australian grass fed beef philippines australian lighting brands audio visual lighting companies aria rug gallery pa

Solved How To Align A Line In Edit Profile Mode To A Sloped Plane Autodesk Community Revit Products

How Can I Attach A Curved Curtain Wall To A Sloped Roof Autodesk Community Revit Products

Solved Sloped Curtain Roof Autodesk Community Revit Products

Revit Adding A Curtain Wall On A Floor Or Roof Cadtechseminars Com Youtube

Revit Sloped Glazing Youtube

Horizontal Curtain Wall Autodesk Community Revit Products

Now select the roof.

Attach curtain wall system to sloped roof plane in revit.

You can now add grids and mullions as with any standard curtain systems. When editing the roof sketch select the edge or edges you would like to slope and select defines slope on the options bar. Curtain wall joining to roof issue hello i am trying to get a curtain wall system to join to a roof but its not working i have tried using the edit profile setting but get the same issue. In the drawing area select the walls to detach.

After you have completed the roof shape you want finish the sketch. They need to be totally vertical. To create a sloped roof in revit modify the footprint sketch of the roof by selecting and specifying the slope defining edges of the roof. To detach walls from other elements.

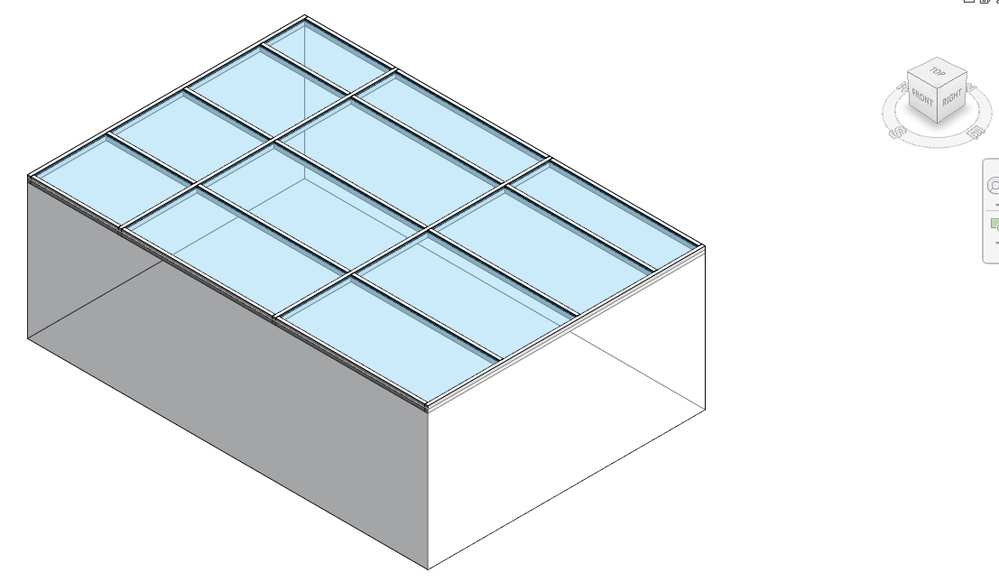

To do this we are asked to use the curtain system tools to create these walls or ceilings. In the drawing area select one or more walls you want to attach to other elements. In the drawing area angle icons identify which lines of the sketch define slope. Go to the type selector and scroll down to sloped glazing.

I get translucent grid come up but it will not cut the panels to an angle any ideas thanks. On the options bar for attach wall select either top or base. Select the elements to which the wall will attach. If you need to edit the shape or slope you can select the curtain system and edit it like a roof.
